Wednesday, 27 May 2015

Basic Electronic Components and it's Uses

I hope you have read the basic things about electronics  or Click here....


Now lets see some basic electronic components and its uses........



Resistors

Resistors


In simple words, resistors are the devices which resists or blocks the flow of current. In other words resistors are used to control the flow of current in a circuit. Generally the resistors are made of materials such as carbon film, Chromium, nickel etc. The resistance in an electronic circuit is measured in ohms and is denoted by the Greek word omega (Ω). the current and voltage in a circuit is varied according to the value of resistance. As the value of resistance increases, the voltage and current decreases.


 Now lets see how to find the value of a resistor.

The value of a resistor can be easily find out. There will be 3 or more color bands on a resistor.
Each color band represents each value. This is the color code of the resistor.

We can see 3 color bands placed near by and one away from them. Generally this fourth band will gold or silver in color. Now hold the resistor in such a way that the 4th band comes to the right side.
 Now count the colors from left to right as 1,2,3,4 etc. now see the table for the color values. Now all you have to do is that combine the first 2 color values together and multiply that value with the multiplier corresponding to the 3rd color band.

The 4th band denotes the tolerance of the resistor. Tolerance is the variation in the resistance value of a resistor when connected to a circuit.

The wattage of a resistor can be identified from its size. As the size of the resistor increases, the power also increases. The resistors are available in 1/4W, 1/2W, 1W, 2W, 5W, 10W etc.


Resistor color code table

For example   :

a resistor has color bands as follows

Green, Blue, Brown and Gold

from the table, the value of Green is 5, Blue is 6, Brown is 10 and Gold is 5%.

Now combine the first 2 color codes. ( Combine Green and Blue → 56 ).
Now multiply this value with the multiplier corresponding to the 3rd band.( Multiplier of Brown is 10 Ω ).

                                   56 X 10  Ω = 560 Ω

Example 2 :

Yellow, Violet, Orange and Silver

Combine the first two codes ( Yellow & Violet → 47 )
 Multiply 47 with the multiplier of Orange (1K Ω).

                                    47 X 1K Ω = 47 K Ω

NoTe  :

1K Ω = 1000 Ω

1M Ω = 1000k Ω



Capacitors

Capacitors


Capacitor is an electronic component which is used to store electric charge. The capacitor is also used as a filter in some electronic devices. The capacitors are made up of insulators such as paper, Mica, Ceramic etc which are placed in between two Metallic plates ( Electrodes ). The insulator placed in between the electrodes are called dielectric. A capacitor blocks  Direct Current ( DC) and passes Alternating Current ( AC ). There are three types of capacitors. They are....

·         Electrolytic Capacitor
·      Ceramic Capacitors
·    Variable Capacitors

The ability of a capacitor to store Electric Charge is called Capacitance. It is measured in Farad. The farad is a larger value. So in practical, we use Pico Farad (PF), Nano Farad ( NF )
or Micro Farad ( µf ).

                                                1 Farad  = 1000000  µf
                                                1  µf        = 1000 nf
                                                1 nf         = 1000 pf

Capacitor Codes and values



Please click here to find the capacitor values.





Diode

Diodes


Diode is an electronic component which which allows the current to flow only in one direction. The  diode is a semiconductor device. It allows the current to pass through it when forward biased and acts as an insulator when reverse biased . When forward biased, the barrier at the PN junction gets destroyed and the current flows through the diode and when reverse biased, the barrier at  the PN junction gets stronger and acts as an insulator. This is happened due to the repulsion of same charges or the attraction of opposite charges.

Identification of terminals   :

Hold the diode in your hand and look for a band on the diode.
The terminal near the diode is Negative ( -ve ) and the terminal which is away from the band is Positive ( +ve ).



Transistors




Transistors


A Transistor is an electronic semiconductor device which is used to amplify and switch electronic signals and electrical power. It has at least 3 terminals for connection to an external circuit.


There are two types of transistors. They are....

·         NPN Transistors
·         PNP Transistors

A transistor in which a thin P type semiconductor is placed in between two N type semiconductor is called a NPN transistor and a transistor in which a thin N type semiconductor is placed in between two P type semiconductor is called a PNP transistor.

Transistor as a switch

Consider an NPN transistor...........
 When a Positive( +ve ) voltage is applied to the base of a NPN transistor, there will be a flow of current between the Collector and Emitter of the transistor. In other words, the transistor goes to on state when a +ve voltage is applied at the base and it goes to off state when -ve voltage is applied to the base.




IC CHIPS ( Integrated Circuit Chips )

IC chips
An integrated circuit or monolithic integrated circuit (also referred to as an IC, a chip, or a microchip) is a set of electronic circuits and components such as transistors, resistors, capacitors etc. on one small plate ("chip") of semiconductor material, normally silicon. This can be made much smaller than a discrete circuit made from independent electronic components.



Inductors


Inductors


An inductor is nothing but a coil. It is as same as a capacitor but opposite in nature and properties. It blocks AC ( Alternating Current ) and passes DC ( Direct Current ). A capacitor stores energy in Electrical field on the other hand an inductor stores energy in magnetic field.
Since an inductor blocks AC signals it can be used as a filter.



Transformers

Transformer



A transformer is an electrical device which is used to increase or decrease the alternating current. A transformer has two coils ( Primary and Secondary ). The principle of a transformer is Faraday's law of Electromagnetic Induction. The input signal is given to the primary coil of the transformer. It induces an e.m.f or voltage on the secondary coil. Hence we can find an output voltage without having any changes in the freequency.

There are two types of Transformers. They are.....

  •                                      Step Up Transformers
  •                                      Step Down Transformers


Step Up Transformer

A step up transformer is used to produce a voltage higher than the input voltage. In a Step Up Transformer, the secondary winding is greater than the primary winding.


Step Down Transformer

A Step Down Transformer is used to produce a voltage lower than the input voltage. In a Step Down Transformer, the secondary winding is lower than the primary winding.


Generally, the transformer used in electronic circuits are Step Down Transformers.


Thursday, 21 May 2015

Some Basic Things About Electronic Devices

Lets see some basic things about electronics.......  :)


What is electronics ?


An Electronic Circuit


Electronics is the branch of physics and technology concerned with the design of circuits using transistors and microchips, and with the behavior and movement of electrons in a semiconductor, conductor, vacuum, or gas.
In other words, Electronics is the science of how to control electric energy, energy in which the electrons have a fundamental role.


What are Electronic Devices ?

An electronic component is any physical entity in an electronic system used to affect the electrons or their associated fields in a manner consistent with the intended function of the electronic system.Components are generally intended to be connected together, usually by being soldered to a Printed Circuit Board (PCB), to create an electronic circuit with a particular function (for example an amplifier, Radio or Music Player). Components may be packaged singly, or in more complex groups as integrated Circuits. Some common electronic components are Capacitors, inductors, resistors, diodes etc. Components are often categorized as active (e.g. transistors and thyristors) or Passive (e.g. resistors, diodes, inductors and capacitors).

Active Devices


Active Devices

Active devices are the electronic components which can control the flow of the electrons electrically. An electronic circuit must contain at least one active device.
         e.g. Transistors, Thyristors etc.

Passive Devices


Passive Devices


The electronic components which are not capable of controlling the current (Flow of electrons) by the application of electrical signals are called passive devices.

           e.g. resistors, capacitors, diodes etc.













Monday, 16 July 2012

LIGHT/DARK SENSOR USING SINGLE TRANSISTOR

Circuit Diagram
This is a simple circuit to sense light/darkness. The LDR(Light Dependent Resistor) used in this circuit is used as the sensor. The resistivity of the LDR varies with the brightness of the light. As the brightness of the light increases, the resistance of the LDR decreases and when the brightness of the light decreases, the resistance of LDR increases. Here the transistor acts as a switch.

The components used are given below.......

Q = BC108 or BC548 or BC547
R1 = 10k
R2 = 27k
B = 9v
LED

NoTe:
Adjust the value of R1 and R2 to get much brightness from LED............. :D
You can also use a buzzer or a normal bulb instead of a LED.

TEMPERATURE SENSOR USING SINGLE TRANSISTOR

Temperature Sensor Using Single Transistor
This is a simple circuit developed by me to sense the temperature. The
TERMISTOR used in this circuit is used as the temperature sensor. The
resistivity of the thermistor varies with increase/decrease in
temperature. This circuit is as same as the dark/light sensor. The
difference is, in the place of the LDR(light dependent resistor) i
placed a thermistor.

The components used are given below.......

Q = BC108 or BC548 or BC547
R1 = 10k
R2 = 27k
B = 9v
LED

NoTe:
Adjust the value of R1 and R2 to get much brightness from LED............
You can also use a Buzzer or an ordinary Bulb instead of LED............. :)

TEMPERATURE SENSOR USING TWO TRANSISTOR

Temperature Sensor Using 2 Transistors
This is a simple circuit developed by me to sense the temperature. The
TERMISTOR used in this circuit is used as the temperature sensor. The
resistivity of the thermistor varies with increase/decrease in
temperature. This circuit is as same as the dark/light sensor. The
difference is, in the place of the LDR(light dependent resistor) i
placed a thermistor.

The components used are given below.......

Q1 = BC108 or BC548 or BC547

Q2 = BC108 or BC548 or BC547

R1 = 10k

R2 = 27k

B1 = 9v

LED

NoTe:
Adjust the value of R1 and R2 to get much brightness from LED.
You can also use a buzzer or a normal bulb instead of the LED........ :)

Sunday, 15 July 2012

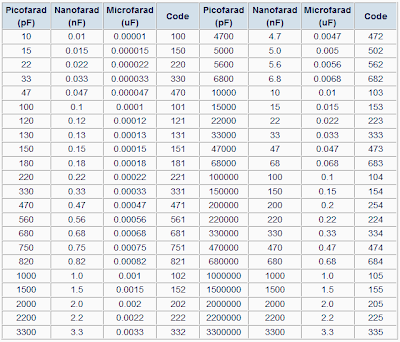

CAPACITOR NUMBER CODING TABLE

Capacitor Code Table
This capacitor number code table will help you to find out the
capacitor values easily.

EASY WAYs TO REMEMBER RESISTOR COLOUR CODE VALUES

There are many mnemonic phrases to help you to remember the order of
the colours:

Black Brown Red Orange Yellow Green Blue Violet Gray White ...
which correspond to the values 0-9.

Black             0
Brown            1
Red                2
Orange           3
Yellow            4
Green             5
Blue                6
Violet             7
Gray               8
White               9

For example:

Bad Beer Rots Our Young Guts But Vodka Goes Well.

Another example:

B B ROY of the Great Britain has a Very Good Wife .......

This wil help you to remember the order of the colours.................. :D

RESISTOR COLOUR CODING SYSTEM

Resistor Color Code System
The last coloured band is usually used to indicate the tolerance - a
measure of how accurate the stated resistance is, i.e. 1%, 2%, 5%, or
10%. In the case of six band resistors, is used to show the
temperature coefficient - a measure of how much the resistance of a
resistor is changed by changes in temperature.

Friday, 13 July 2012

RESISTORS & ITS VALUES WITH IMAGE

Resistors with their Values
This picture includes the values of resistors with color coding. It
will help you to identify the resistors easily.

Please click here to find the values of the resisrors other than the above........ :)

CLAP SWITCH

Clap Switch
This is a small circuit that acts as a sound activated switch. The ic used is ne555 wich is known as the multi vibrator or timer IC.

Components  :

IC  ne555                        - 1

Transistor   BC547           - 2

Condenser Mic                - 1

Resistor         4.7k           - 1
                     470R          - 2
                         1K          - 1
                       47K          - 1

Capacitors       100n         - 2
                        100uf        - 1

  LED                                - 1

Battery               6V

NoTe :

You can also use the Transistor BC548 instead of BC547 ...... :)
